Corrugated & Diamond Plate Switchboard Matting

Material: PVC (vinyl)
Thickness: 1/4 inch (0.25")

STANDARDS & TESTING

• Passes electrical proof test ASTM D178 (Min. 20,000 V for one minute)
• Passes dielectric breakdown test ASTM D149 (Min. 30,000 V)
• Passes O3 resistance test method B ASTM D178 (any visual degradation)
• Tensile strength ASTM D412 DIE C (Minimum 700 PSI): 1,318 PSI, PASS
• Elongation ASTM D412 DIE C (Minimum 250%): 317%, PASS
• Tension set ASTM D412 DIE B (Maximum 0.50 in.): 0.4827 in., PASS
• Moisture absorption ASTM D570 (Maximum increase 3%): 0.09%, PASS
• Accelerated aging ASTM D573 (Minimum 50% of original tensile strength): 1,363 PSI (103% of original tensile strength), PASS
• Flame resistance ASTM D178 Appendix (Maximum 0.5 in./12.7mm after 30 seconds): 0.12 mm/s, PASS
• Oil resistance ASTM D471 (Maximum volume increase 4%): 0.04%, PASS

Military Diamond Switchboard Matting

Material: PVC (vinyl)
Thickness: 3/16 inch (0.1875")

STANDARDS & TESTING

• Voltage Test MIL-DTL-15562G, Min. 15,000V for 1 Minute, Pass
• Dielectric Strength Test MIL-DTL-15562G, Min. 30,000V, Pass
• Visual/Dimensional Exam MIL-STD-407, Any Visual Degradation, Pass
• Tensile Strength ASTM D412 DIE C, Min. 800PSI, Pass
• Ultimate Elongation ASTM D412 DIE C, Min. 75%, Pass
• Permanent Set ASTM D412, Max. 25%, Pass
• Hardness ASTM D2440, 95+/-5(Shore A), Pass
• Immersion Test FED-STD-601 Method 6121, Min. 70% of Original Tensile Strength, Pass
• Oxygen Bomb Test FED-STD-601 Method 7111, Min. 80% of Original Tensile Strength, Pass
• Light Aging ASTM D750, Min. 65% of Original Tensile Strength, Pass
• Flame Resistance MIL-STD-1623, Char Length Max. 10in. Combustion Time 4.0 Min, Pass
• Abrasion Resistance ASTM D1242, Max. Mils Lost 10, Pass
• Flexibility Test FED-STD-501 Method 3111 Shall Pass, Pass
• Dimensional Stability Test ASTM D1204, +/-0.020 IN/FT, Pass
• Gloss Test ASTM D2457, 50, Pass
• Color FED-STD-595, As Specified, Pass

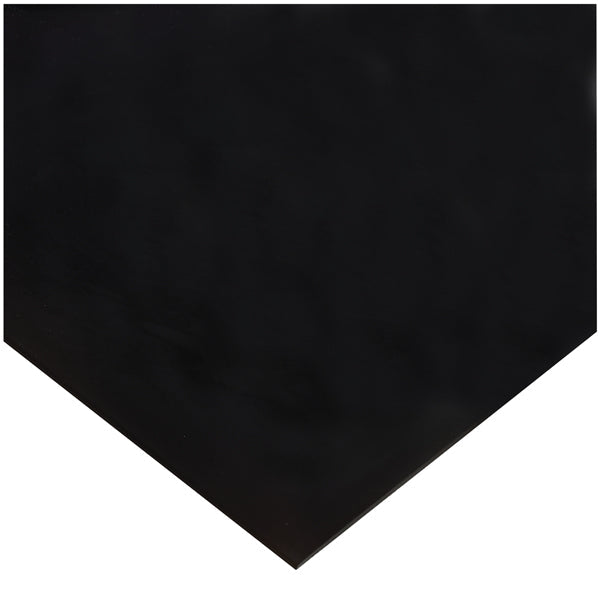

Military Smooth Switchboard Matting

Material: PVC (vinyl)
Thickness: 1/8 inch (0.125")

Switchboard mats can be cleaned by scrubbing with a deck brush (when needed) using detergent with a neutral pH, and rinsed with a hose or pressure washer. Mats should be laid flat or hung to dry.
