SURFACE
Fiber: Solution-dyed polypropylene
Weight: 24 ounces/yard²
Construction: Needle-punched
Design: Waffle pattern

BACKING
Material: SBR rubber (20% recycled content) - universal cleated
Thickness: 200-mil

OVERALL TILE THICKNESS: 7/16 inch (0.4375")

STANDARDS & TESTING

• Passes DOC-FF1-70 for the surface flammability of carpets

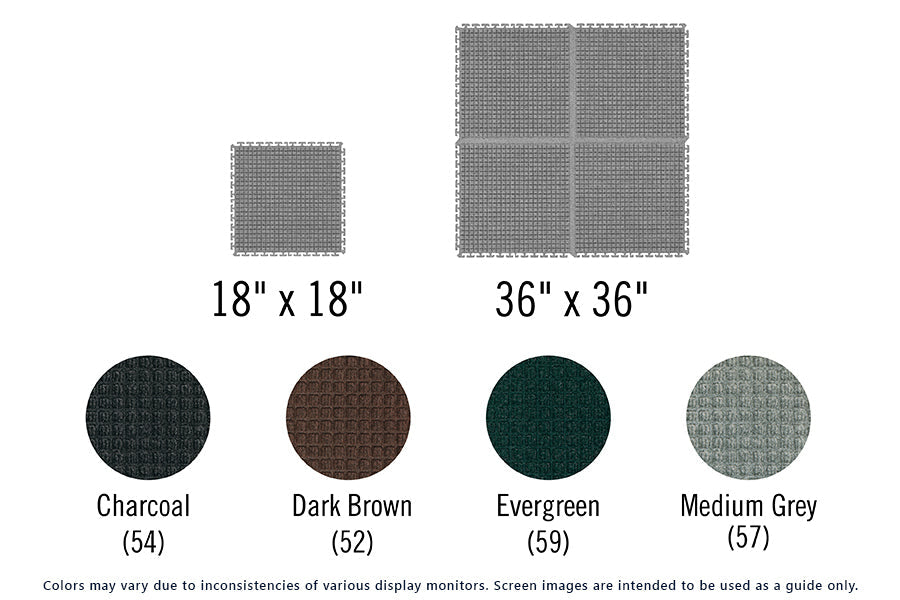

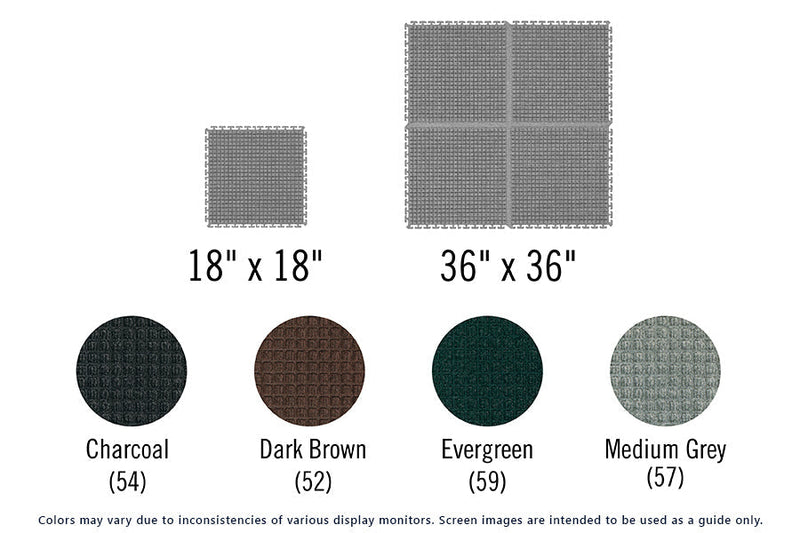

18" x 18" x 7/16" (10 tiles/case)
36" x 36" x 7/16" (4 tiles/case)

For the best results, utilize the following cleaning method to clean your WaterHog tiles:

• Vacuum regularly (daily in high-traffic commercial areas; weekly in lower traffic areas).
• Extract or hose off as needed to remove heavy soil/debris.  Hang to dry.

Always make sure the mat is dry before placing it back in service.

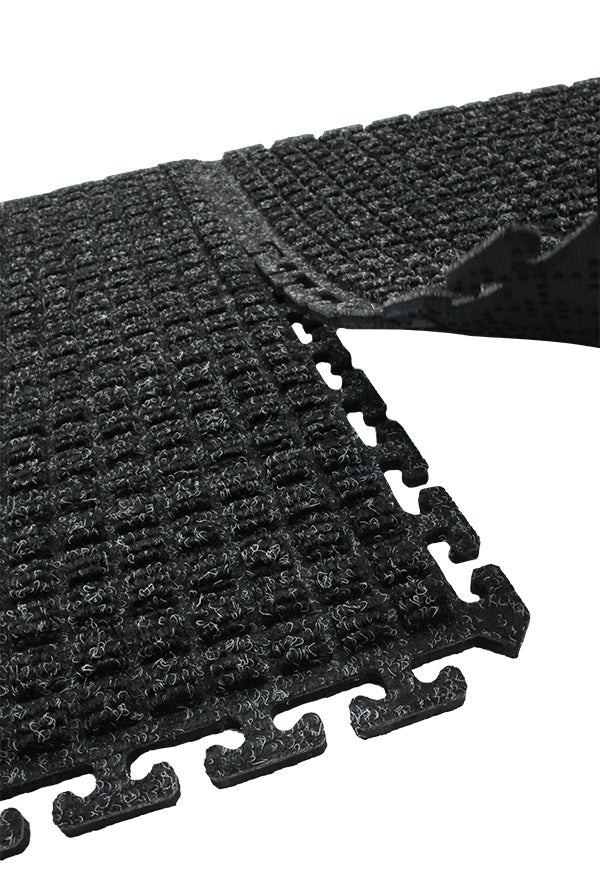

Step 1: Connect as many tiles as is required to achieve the width of the installation.

A Directional arrow is printed on the back of each tile to indicate the direction of the fabric pile. For all tiles to match, the arrows on each tile should be installed in the same direction.

Step 2: Connect as many rows of tile as is necessary to achieve the length of the installation.

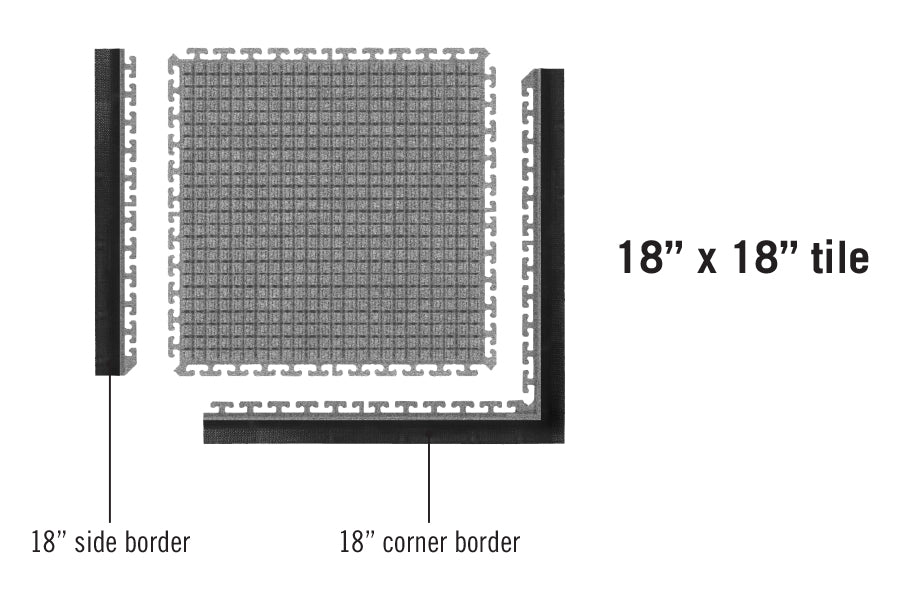

Step 3: If installation requires borders, then connect four corner borders to the installation and as many side borders as necessary to complete the installation. If heavy traffic is anticipated across a border, we recommend gluing borders in place with a solvent free adhesive like S1500.

Note: Tiles can be installed wall to wall. Find the center point of the installation and connect tiles together in all directions toward the walls. Tiles should be cut to fit against each wall.
